Our engraving machines create images on the stone using diamond tip.
We call this technology “Impact Etching”. It is different from laser engravers, because we hit the stone physically, creating bright, deep etchings.
We offer 2 types of DiamondEdge™ Impact Etching Machines

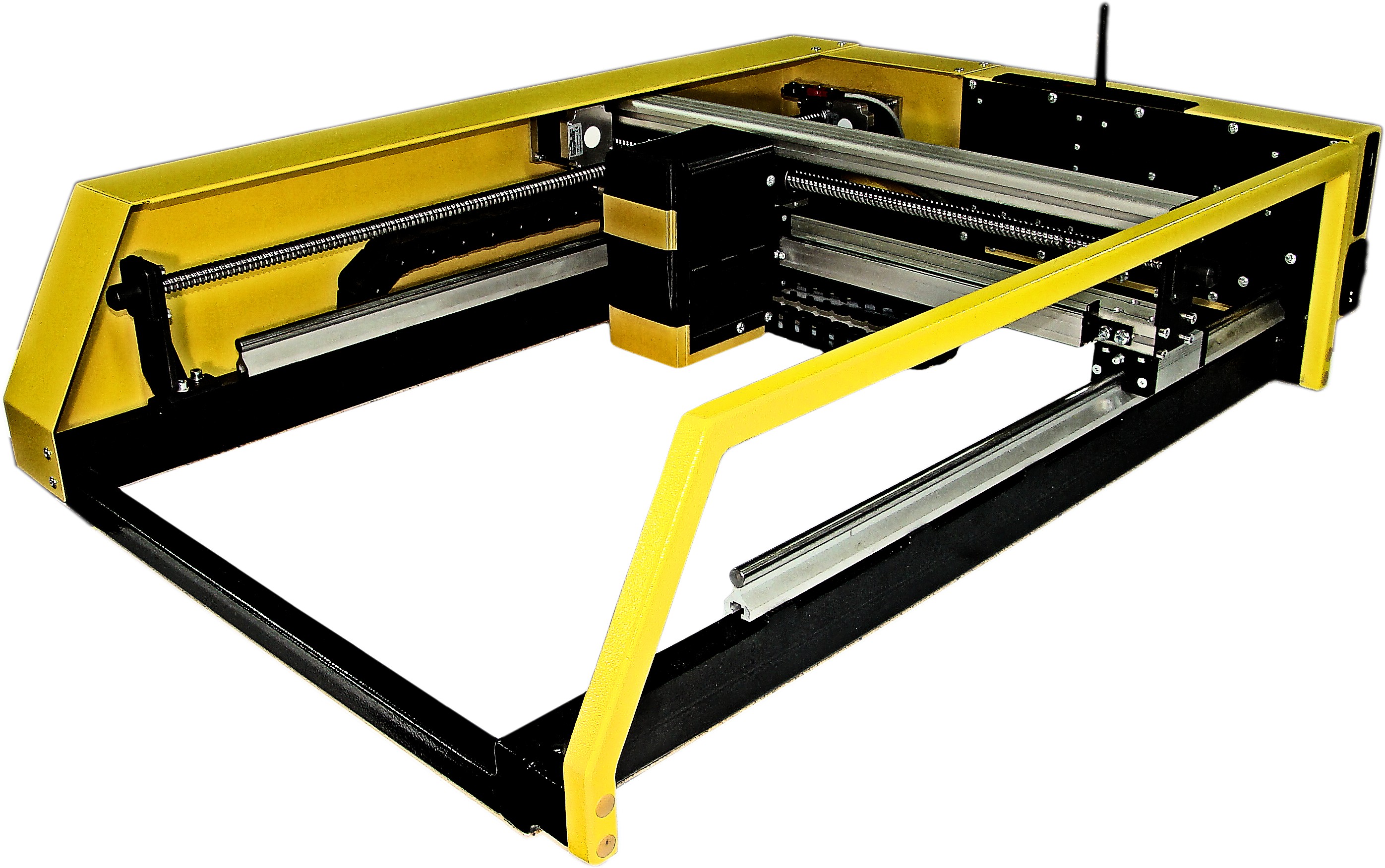

DiamondEdge-Sprinter™
DiamondEdge-Sprinter™ is a portable model that can be lifted by a single person and transported in a small truck, or even in the back seat of a compact sedan. Sprinter™ model is designed to be placed on top of the stone, so it does not impose any restrictions on how big the stone is. You can etch the images that are larger than the working field of the machine by breaking them into pieces, and by etching large images in parts. Check this YouTube video prepared by one of our customers, illustrating memorial plaque etching for Spaceview park in florida, across the water from the Kennedy Space centre:
(the video shows our previous model, Granite-CP™, but you can do the same with DiamondEdge-Sprinter™)
Smaller stones, such as 12×12 tiles often used in columbaria, can be placed inside of the machine frame

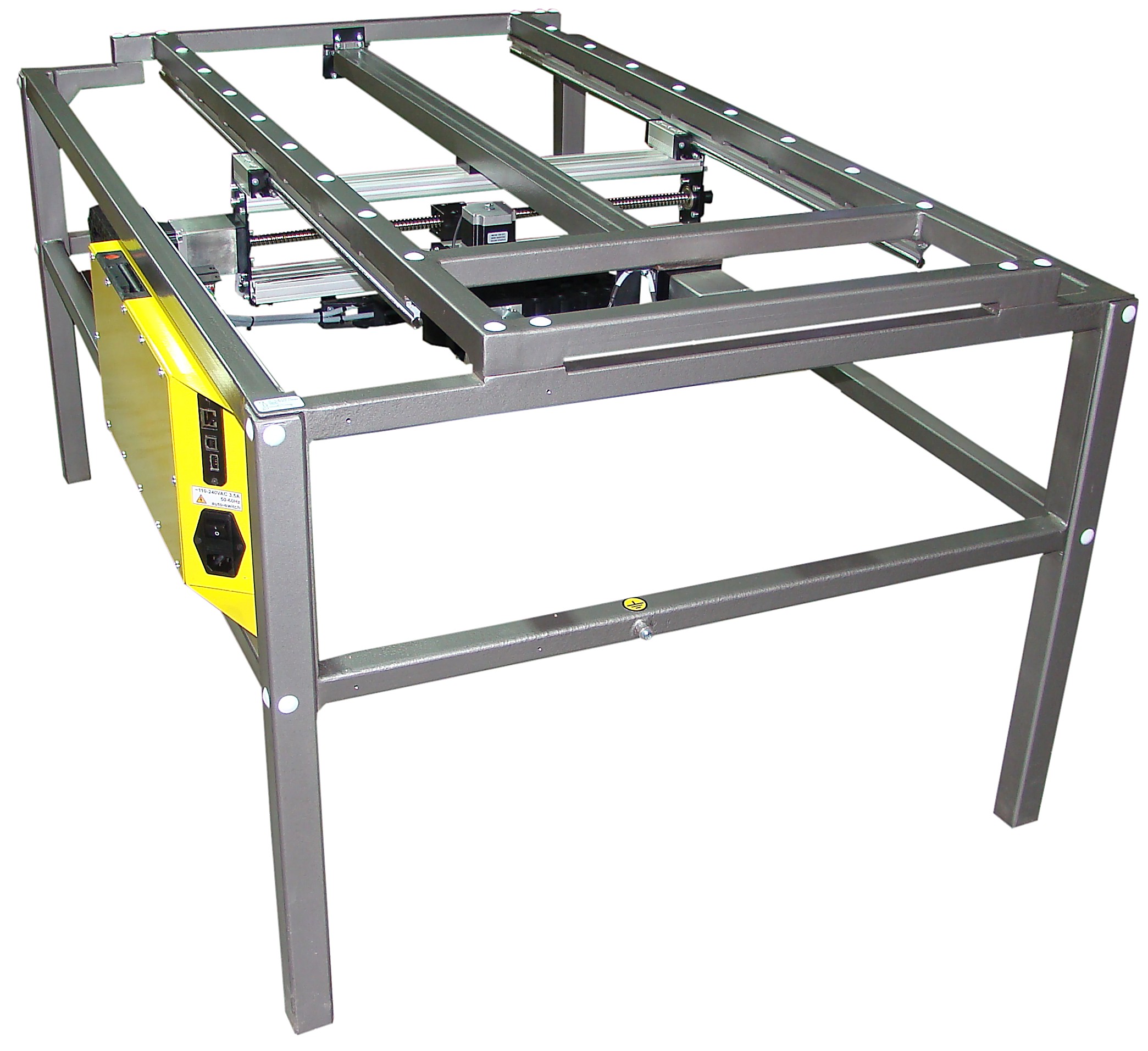

DiamondEdge-Max™
DiamondEdge-Max™ is a stationary model. You feed the stone into the machine frame from underneath, using pallet truck or low profile dolly.
Sprinter™ and Max™ model use identical etching head, so there is no difference in etching quality between those two models. Both will create amazing stone engravings.
The only difference is the size of working field.
Mechanical components (linear drives) for both machines are made in Germany, by Igus.
Machine specs
Dimensions represent the maximum size of work area that machines can process in a single job.
Note that you can etch larger pictures in pieces using machine of any size.
Note that machine prices provided below apply to United States only.
Prices in other countries might differ. Call our resellers for details.
DiamondEdge-Sprinter™
| Price: $ 14,950 | Metric units
Length in MM weight in KG |
US Units
Length in inches weight in pounds |
||||
|---|---|---|---|---|---|---|
| Length | 947 | 37.3 | ||||
| Width | 687 | 27.0 | ||||
| Height | 220 | 8.7 | ||||
| Working field size | 400 | 640 | 15.7 | 24.4 | ||
| Machine’s weight | 28 | 62 | ||||
| Shipment | ||||||
| Box dimensions | 1020 | 770 | 280 | 40.2 | 30.4 | 11.1 |
| Package weight | 50 | 110 | ||||
DiamondEdge-Max™
| Price: $ 22,490 | Metric units Length in MM weight in KG |
US Units Length in inches weight in pounds |
||||
|---|---|---|---|---|---|---|
| Length | 1710 | 67.3 | ||||
| Width | 1032 | 40.6 | ||||
| Height with legs removed | 310 | 12.2 | ||||
| Height with legs attached, adjusting screws completely in |
700 | 27.6 | ||||
| Range of upward leg adjustment | 50 | 2.0 | ||||
| Max clearance between the floor and lower bar of the machine’s frame |
440 | 17.3 | ||||
| Etching head vertical movement range | 45 | 2.0 | ||||
| Working field of the machine | 1400 | 700 | 55.1 | 27.5 | ||
| Machine’s weight | 63 | 139 | ||||
| Shipment | ||||||
| Box dimensions | 1780 | 1100 | 440 | 70.1 | 43.3 | 17.3 |
| Package weight | 120 | 265 | ||||
